Custom Made Inner Guided Hydraulic Cylinder For Aluminium Casting Machine

Ask Lasest Price
Brand Name :	FLUTEC
Model Number :	498
Certification :	ISO9001, Dnv SGS BV ABS Gi
Price :	USD 100-10000 Unit
Payment Terms :	L/C, T/T, D/A, D/P
Supply Ability :	5000piece/Year
Delivery Time :	30-180 work days

Add to Cart

Product Details
Company Profile

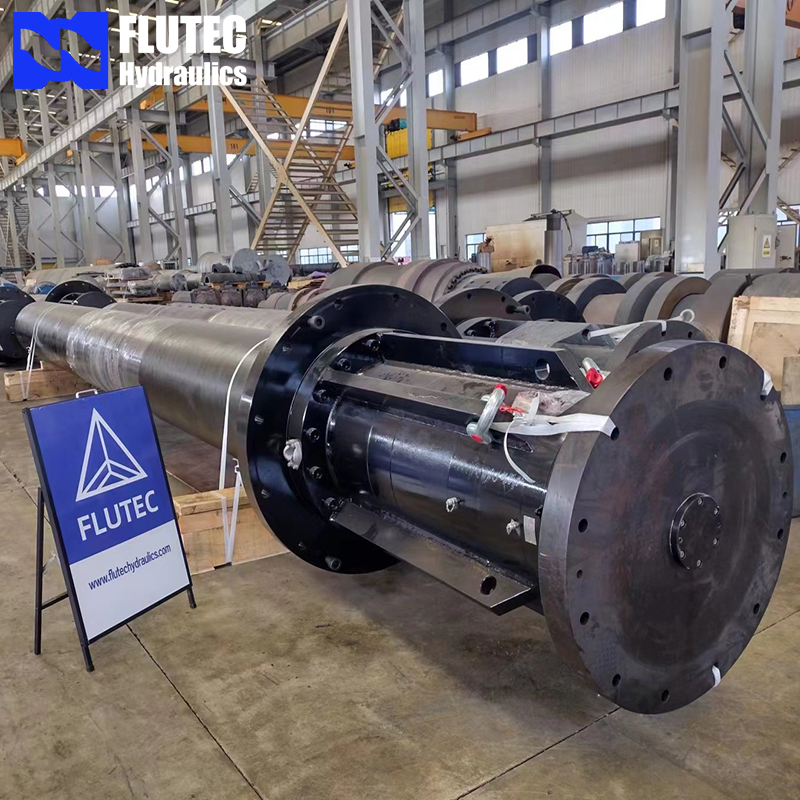

Custom Made Inner Guided Hydraulic Cylinder For Aluminium Casting Machine

The sealing performance of O - ring piston seals depends on several factors. The material of the O - ring is crucial, as different elastomers have different properties in terms of chemical resistance, temperature resistance, and elasticity.

Product Description

Technical Data

Cylinder Type	Mill type, Head Bolted, Base Welded
Bore Diameter	Up to 2500mm
Rod Diameter	Up to 2000mm
Stroke Length	Up to 20,000mm
Piston Rod Material	AISI 1045, AISI 4140, AISI 4340, 20MnV6
Rod Surface Treatment	Hard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube Material	Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140, Stainless steel 2Cr13 or 1Cr17Ni2
Tube Surface Painting	Colors according to RAL and thickness according to customer needs
Mounting Type	Clevis, Cross tube, Flange, Trunnion, Tang, Thread
Design Pressure	Up to 40Mpa
Seal Kits Type	PARKER, MERKEL, HALLITE, , TRELLEBORG
Quality Assurance	1 year
Certificate	SGS, BV, ABS ,GL, DNV etc.
Application	Heavy industry, steel mill, Hydraulic press, etc.

Quality Assurance

Quality Process	Our quality management system is certified to ISO 9001
	Quality control standards include material records, process control plans,
	Manufacturing approvals and inspection data
Testing Standards	All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
	Static and dynamic pressure testing.
	Ultraviolet leak detection technology.
	Non-destructive testing.
Fluid Cleanliness	Real-time monitoring and test phase documentation
Fluid Cleanliness	Independent sampling and oil diagnostic control

Chinese Manufacture Custom Inner Guided Cylinder for Aluminium Casting Machine

Q1: What does your company do?
A: we are a supplier of high-quality hydraulic products including Hydraulic Cylinder,Honed Tube,Chromed Rod,Machined Platen,Cylinder Parts, and other components.

Q2:Are you a manufacturer or trading company?
A: We are a manufacturer.

Q3: Are you able to make Non-standard or customized products?
A: Yes, we can.

Q4: How long is your delivery time?
A: The delivery time for customized products is 15-30 working days.But it also depends on the product requirements and quantity.

Q5: Do you provide samples?
A: No, we don't provide samples.

Q6: What are your payment terms?
A: T/T/ or L/C or D/P. If you have any questions, please feel free to contact us.

Q7: What are your After-sales services?
A: Before shipment, Each individual product will be strictly inspected on our factory QC Process System. In addition, We have a Customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problems is always our goal.
